ARCHITECTURAL SERIES-STEEL
Commercial Glass Overhead Doors
Steel Frame

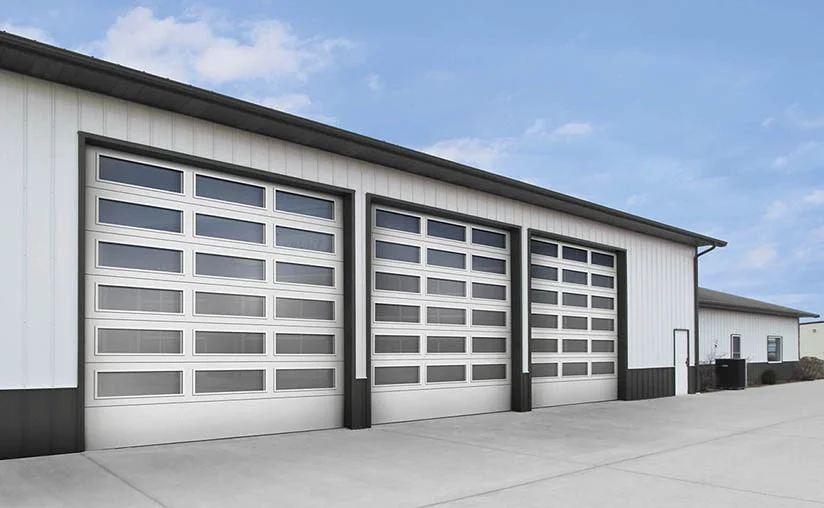

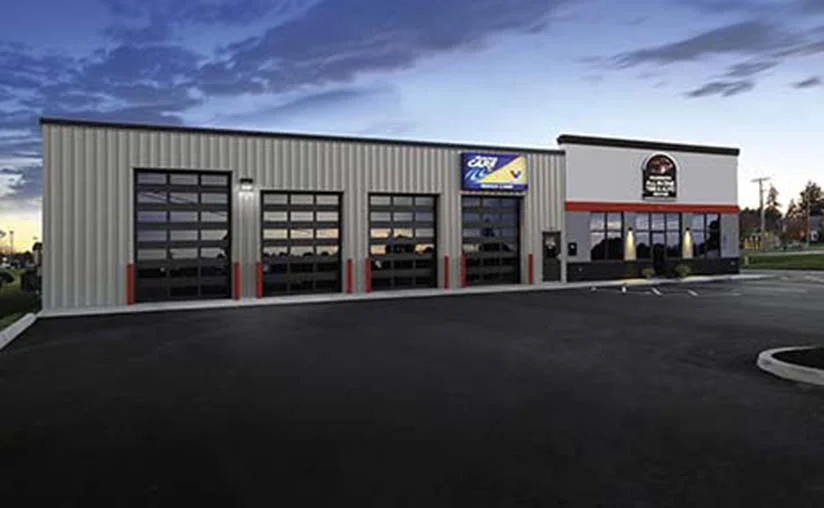

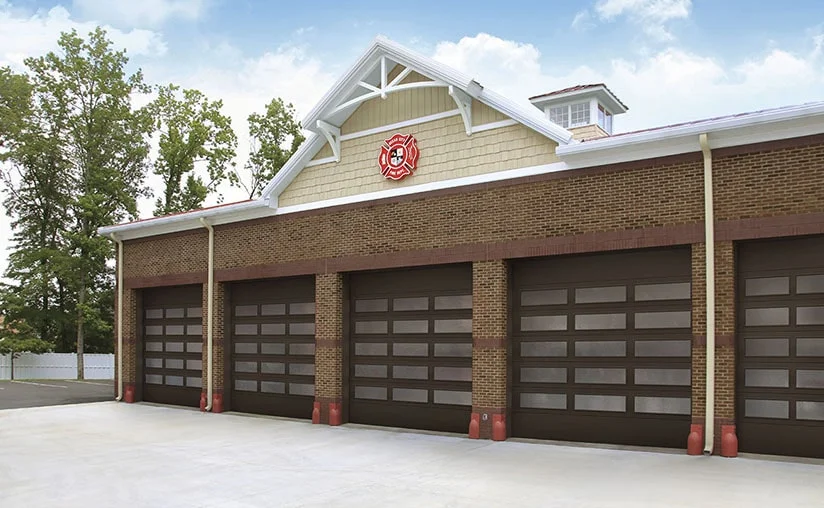

Clopay’s full-view series doors are ideal for commercial buildings requiring visibility, access to natural lighting and modern look. They're the perfect choice for everything from restaurants and fire stations to service stations and car dealerships.
These overhead doors are available with aluminum or steel frame construction, providing options that ensure maximum durability and reliability. Customize your door with a wide variety of window, color, design and performance options.
Insulated Steel Full-View Doors
Notes:
R-Values Solid calculated per DASMA TDS-163 on a solid door
R-values with Glass calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass.
Tested door U-factor is in accordance with DASMA 105
*Clopay's proprietary polyurethane Intellicore insulation.
Doors are stucco embossed
All models contain thermal break
✭Maximum Width and Height values listed are Standard sizing.
STEEL INSULATED FULL-VIEW DOORS
GLASS/WINDOW OPTIONS:
 19-1/2” x 16” |  42” x 16” |  Modern Slim Windows* |
*Available on models 3728/3729 and 3208/3209 only.
Models 3728 and 3729 are available with 1/8" clear tempered, 1/8" frosted tempered, 3/4" insulated tempered and 3/4" frosted insulated tempered glass. Additional glazing options include: matte, pebble, bronze tinted and impact rated window.
COLOR OPTIONS:
41b0f13537a5432fac7f1b0bb02c62d9.png?sfvrsn=35fdd24d_2 "CHOCOLATE")
± Finish will have smooth texture
Custom powder coat and Color Blast® finishes available.
Premium finishing options include:
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
Performance Options Available:
Specialty Options Available:
Mullions
Safe-T-Stop™ Chain Hoist
Steel Insulated Full-View Doors
All of our Steel Insulated Door models come with the following:| Joint Design: | Tongue and groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Limited Warranty: | 10-year paint / 10-year delamination / 1 year material and workmanship / 1 year hardware |

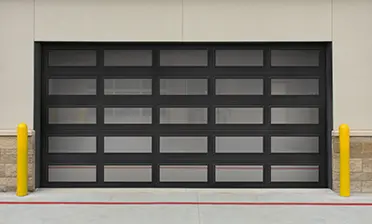

Model 3728/3729
| Section Design/Emboss: |
(3728) 2” thick stucco embossed steel with flush exterior skin pattern (3729) 2” thick stucco embossed steel with minor ribbed exterior skin pattern |
| Steel Gauge: | 27 exterior; 27 interior |

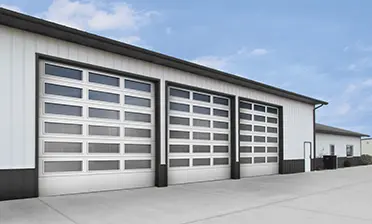

Model 3708/3709
| Section Design/Emboss: |
(3708) 1 3/8” thick stucco embossed steel with flush exterior skin pattern (3709) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern |
| Steel Gauge: | 27 exterior; 27 interior |

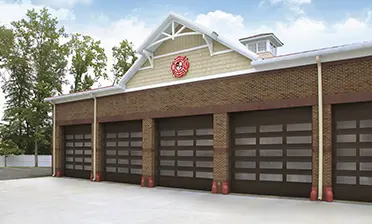

MODEL 3208/3209
| Section Design/Emboss: |
(3208) 2” thick stucco embossed steel with flush exterior skin pattern (3209) 2” thick stucco embossed steel with minor ribbed exterior skin pattern |
| Steel Gauge: | 24 exterior; 27 interior |
Model 3158/3159
| Section Design/Emboss: |
(3158) 1 3/8” thick stucco embossed steel with flush exterior skin pattern (3159) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern |
| Steel Gauge: | 27 exterior: 27 interior |
| Models | BIM | Shop Drawing | Specification | Literature(PDF) | Instruction Manual(PDF) | Warranty |
|---|---|---|---|---|---|---|
| Steel | ||||||
| Model 3158 | 3158, 3159 Brochure | Installation Manual |  |
|||
| Model 3159 | 3158, 3159 Brochure | Installation Manual | |
|||
| Model 3208 | 3208, 3209 Brochure | Installation Manual | ||||
| Model 3209 | 3208, 3209 Brochure | Installation Manual | ||||
| Model 3708 | Installation Manual | |
||||
| Model 3709 | Installation Manual | |
||||
| Model 3728 |   |
 |
3728, 3729 Brochure | Installation Manual | |
|
| Model 3729 | |
 |
3728, 3729 Brochure | Installation Manual | |
|
COMMERCIAL HARDWARE
Commercial door closures are manufactured with durable hardware to meet the demands of high-traffic environments. All of our doors include the standard hardware listed below. To view hardware upgrades, select the “Options” tab.
- 14-gauge hinges
- Commercial 10-ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for simplified operation
- Inside slide lock for improved security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
COMMERCIAL TRACK APPLICATIONS
Commercial and industrial buildings often need to meet code requirements and ADA standards for space. Avoid wear and tear on overhead doors and mitigate safety risks by providing your client with the best overhead door track for their application. Clopay track solutions include standard lift, low headroom with a front or rear mount, follow roof pitch lift, full vertical lift, and combination options. Learn more
COMMERCIAL TORSION SPRINGS
Commercial and industrial overhead garage doors vary in size, design, and operation. Your torsion spring ensures that your door withstands the test of time and maintains peak performance. Clopay torsion spring options can be designed for the industry standard of 10,000 cycles or can be upgraded to 25,000, 50,000, or 100,000 expected life cycles. Click here for details
